DORSA
Private Residence Resolution

Melissa Tuffley Residence

Prepared exclusively for Melissa Tuffley.

DORSA Residence Resolution · DORSA-RR-TUFFLEY-01

TUFFLEY
RESIDENCE

An existing Sunrise Beach home with good light, outlook and warm material character, but a living, dining and kitchen layout Melissa says does not work. The brief is not to decorate around the problem. It is to make the social room flow properly before anything new is chosen.

Sunrise Beach · QLDExisting home449m² approx. house612m² approx. landLiving · Dining · Kitchen
Melissa Tuffley existing living, dining and kitchen overview
Supplied Tuffley residence floor plan

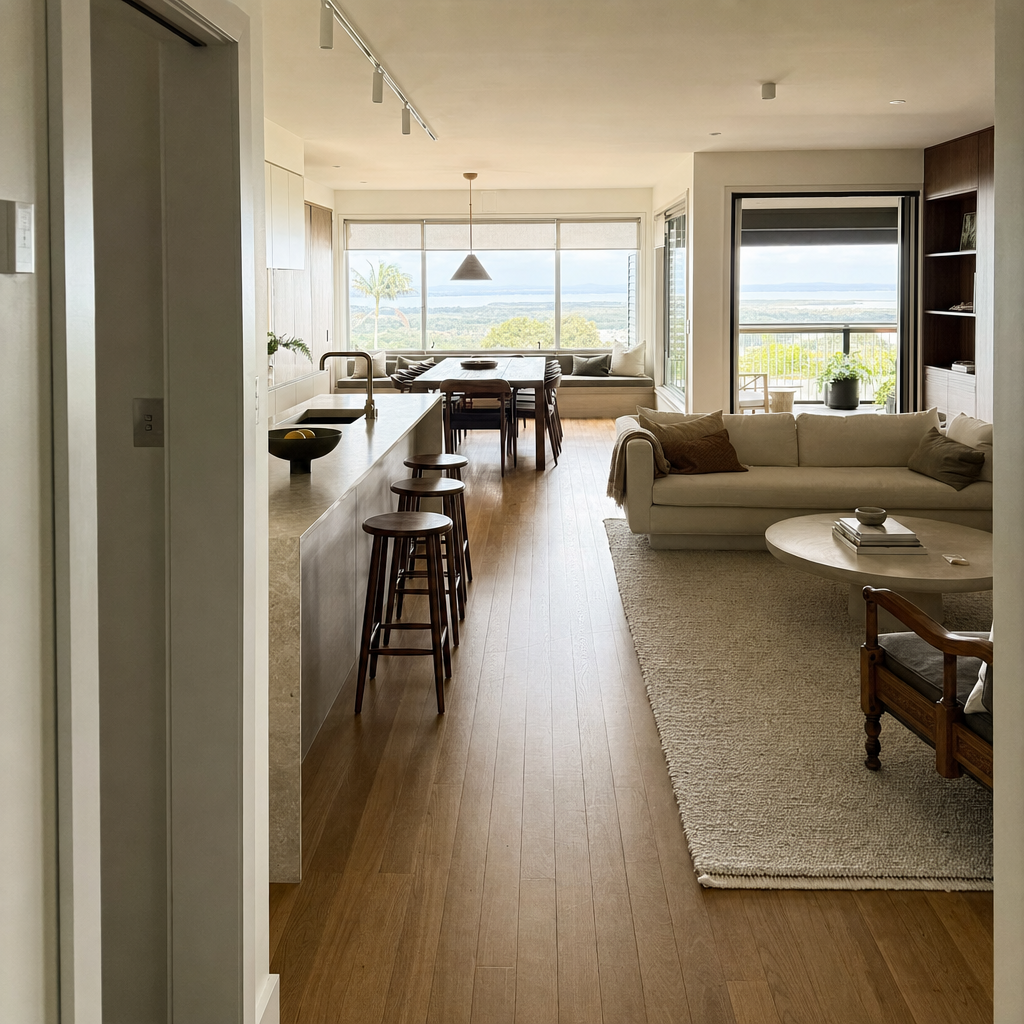

Existing Tuffley kitchen and terrace connection
ClientMelissa Tuffley
LocationSunrise Beach · QLD 4567
PropertyExisting home
Primary focusLiving · Dining · Kitchen
StageJust planning · nothing chosen
BriefFix the flow · review everything
The five answers

What is actually making the room feel wrong, and what is worth changing before Melissa spends anything?

01Does the current layout work?Not well enough

The room has strong ingredients, but the kitchen island, dining setting, living furniture and terrace connection behave as separate pieces rather than one social sequence. The circulation line through the middle is doing too much work.

02Is the room simply too small?No

The supplied plan identifies a 6.6m x 6.6m Living/Dining zone with the kitchen directly adjoining it. The issue is not a lack of floor area. It is how that area is allocated between cooking, sitting, dining, movement and the terrace.

03Should the wall behind the fridge be opened?Worth testing · not assuming

Melissa has specifically raised opening the wall behind the fridge toward the verandah. That could improve food service, daylight, breeze movement and wet-weather connection, but only if structure, services, waterproofing and the final island clearances are proven first.

04What is already worth keeping?Quite a lot

The warm timber floor, broad glazing, window seat, covered outdoor connection and existing dark-timber joinery give the room character. The first question is how much of that can be retained while the layout is corrected.

05What should happen next?One measured option study

Draw the existing social room accurately, then test two real options: one that keeps the fridge wall and makes the island work harder, and one that opens the wall toward the covered terrace. Overlay the actual dining, living and sit-around kitchen seating before choosing finishes or furniture.

01 · Verdict

The room has enough ingredients. They are currently competing.

Melissa does not need a whole new aesthetic to make this work. The highest-value move is to fix the relationship between the kitchen, dining table, living zone and covered outdoor space, then decide what deserves replacement.

DORSA verdict
Make the island the hinge, not the obstacle.

The current island is useful but visually and spatially sits between the kitchen and the rest of the room. A better scheme should let it become the place that connects cooking, casual seating, dining and the terrace, especially when weather pushes everyone inside.

Keep

  • The warm timber flooring and generally light room envelope.
  • The large window wall and built-in window seat.
  • The covered terrace / alfresco relationship to the social floor.
  • The existing dark-timber joinery if it still works after the new layout is proven.

Change

  • The island's role, seating logic and relationship to the main circulation path.
  • The way dining is compressed between the window seat, terrace doors and living zone.
  • The amount of small furniture competing around the sofa and TV joinery.
  • The kitchen-to-terrace connection if the measured wall-opening study proves it worthwhile.

Verify

  • Exact measured dimensions of the social floor and all pinch points.
  • Whether the wall behind the fridge is structural and what services run through it.
  • How protected the terrace is in rain and wind before relying on it for daily use.
  • The dimensions and condition of existing joinery before deciding what is kept or demolished.
Recommendation

Do not renovate the whole room to solve a circulation problem. Prove the smallest architectural move that makes the kitchen, dining, living and covered terrace work as one room.

02 · Space

One social room. Four jobs. One clear path.

The first-floor social zone has to cook, gather, dine and relax without any one function blocking another. The photos show plenty of usable area; the task is to stop circulation from running through the middle of every furniture zone.

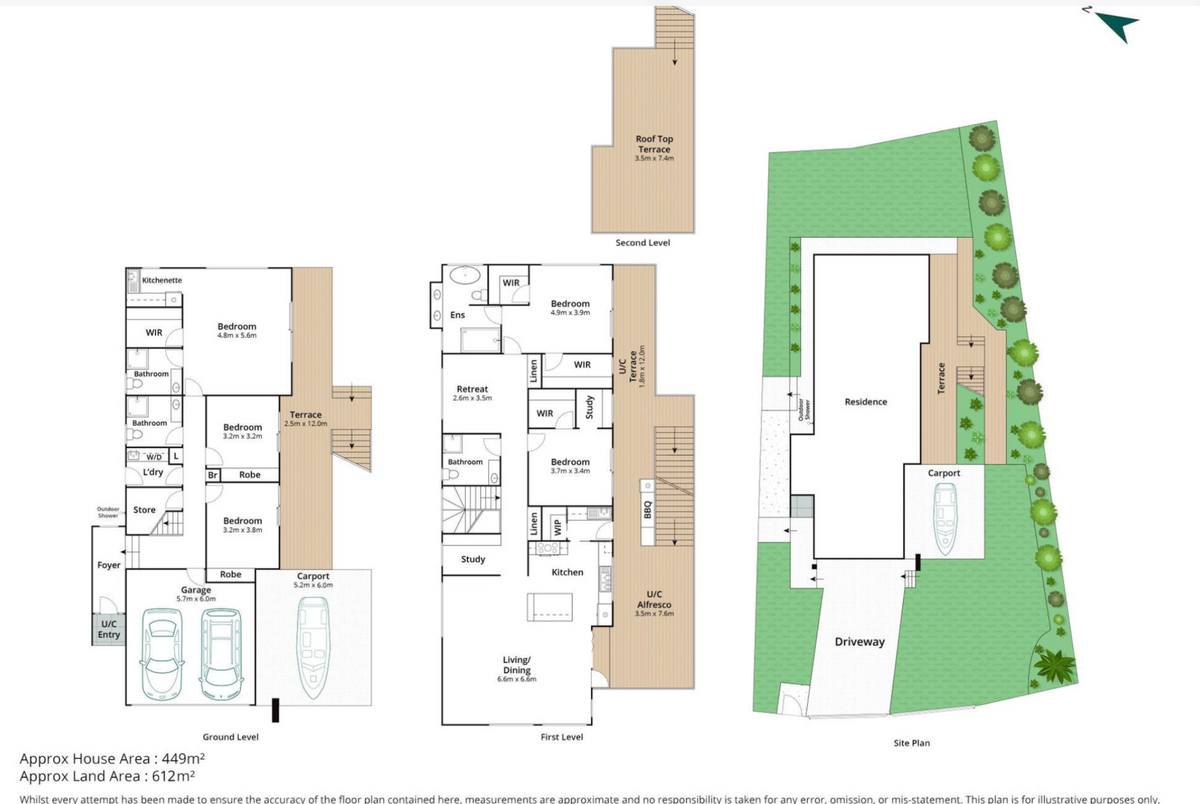

Melissa Tuffley supplied whole-home floor plan
Plan lens

The plan already shows where the opportunity sits.

  • The plan identifies Living/Dining at approximately 6.6m x 6.6m, with the kitchen immediately adjoining.
  • A covered alfresco is shown at approximately 3.5m x 7.6m, plus a covered terrace approximately 1.8m x 12.0m.
  • The social floor therefore has meaningful indoor-outdoor depth. The design question is how easily the kitchen participates in it.
  • The dining table should not be allowed to become the circulation choke point between the view wall, living area and terrace doors.
  • Any new island should be tested with actual stool depth, working clearances and the route to the terrace.

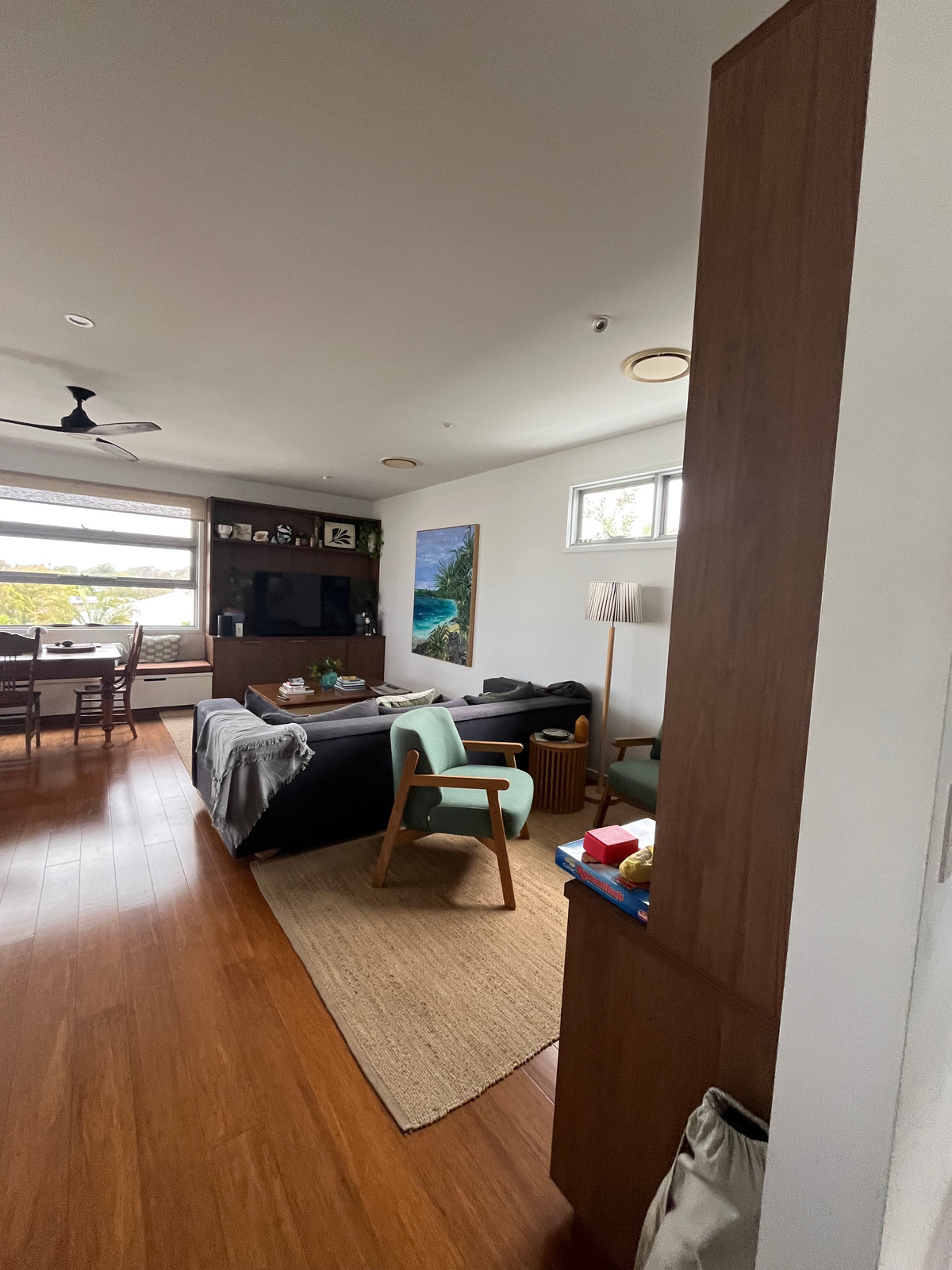

Existing Tuffley social room overview
Current room lens

Good bones, fragmented relationships.

  • The island has a generous worktop but little true sit-around function in its current form.
  • The dining table benefits from the window seat and view, but sits very close to the terrace connection.
  • The living zone is visually grounded by the TV / storage joinery, yet the sofa and occasional chairs create several small edges around the main path.
  • The warm timber floor and existing joinery already give the space character. A full material reset is not automatically required.
  • The strongest test is whether the kitchen can turn more directly toward the social room and covered outdoor zone.
Movement test
EntryLivingDiningView
KitchenIsland / benchDining
KitchenProposed fridge-wall openingCovered terrace
Wet weatherSit-around kitchen seatDiningLiving

Cook + gather

  • Make the island / bench the social hinge.
  • Give it real seating only if working clearances remain generous.
  • Keep the kitchen visually connected to dining and the terrace.

Dine + view

  • Use the window seat as an asset rather than fighting it.
  • Choose table geometry that preserves access to the terrace.
  • Do not oversize the dining setting simply because the room can physically take it.

Live + retreat

  • Keep one clear rug / sofa field around the TV joinery.
  • Reduce unnecessary small furniture at the circulation edge.
  • Let the living zone feel calmer than the kitchen, not equally busy.
03 · Finish

Do not erase the warm bones just to make it feel new.

The existing timber floor, dark joinery, soft white envelope and broad daylight already suit a relaxed coastal home. Sunrise Beach adds a practical reason to prioritise shade, airflow and a strong indoor-outdoor threshold over decorative complexity.

Finish thesis
Edit. Lighten. Keep the character.

The joinery can become a deliberate warm anchor if the rest of the room is quiet. New work should reduce visual noise around it: fewer timber tones, one restrained stone family, warm whites and durable low-glare finishes rather than a total style reset.

Soft warm white
Existing warm timber
Quiet stone / mineral
Muted coastal green
Controlled dark accent

Day

  • Protect the existing daylight and view wall.
  • Keep large surfaces quiet so the timber floor and landscape remain the colour.
  • Use shading and window treatments to control glare without killing airflow.
  • Do not block operable openings with oversized furniture.

Night

  • Replace the current flat brightness with layers: island task light, dining light, joinery / art accent and low living ambience.
  • Keep colour temperature warm and consistent through the social room.
  • Put decorative emphasis over the table or island, not both at maximum volume.
  • Preserve a softer living scene for television and late-night use.

Avoid

  • Painting every warm timber element out simply to make the room more current.
  • High-contrast black detailing around every opening.
  • Multiple new stones or timbers competing with the existing floor and joinery.
  • A glossy coastal look that ignores the room's existing character.
Finish rule

The room needs a stronger composition before it needs a new palette.

04 · Furniture

Furniture should clear the path before it fills the room.

Melissa has not chosen new pieces yet, which is useful. It means the room can be solved spatially first rather than forcing a new plan around purchases already made.

Furniture profile
Fewer pieces. Better scale. Cleaner edges.

The current room already has a sofa, two armchairs, coffee tables, a long dining setting and built-in joinery. The next scheme should reduce the number of competing edges and use each major piece to define a zone rather than create another obstacle.

Primary sofaTest position before replacementDo not assume a new sofa fixes the layout. First test whether a cleaner footprint or orientation can open the path between living, dining and the terrace.
Living rugOne clear fieldUse one rug large enough to visually contain the sofa and any retained chair without spilling into the main circulation line.
Dining tableWork with the window seatThe table should use the existing bench and view wall intelligently while preserving terrace access and chair pull-back.
Kitchen seating3-4 real sit-around positionsIf Melissa wants wet-weather gathering at the island / bench, draw actual stool depth and knee space before fixing the island size.
Occasional chairsOne or two, deliberatelyAvoid recreating the current cluster of small edges. A single strong counterpoint chair may be more useful than a pair.
TerraceAn extension, not a second dining roomUse the covered outdoor zone for flexible weather-dependent overflow without duplicating every indoor function outside.

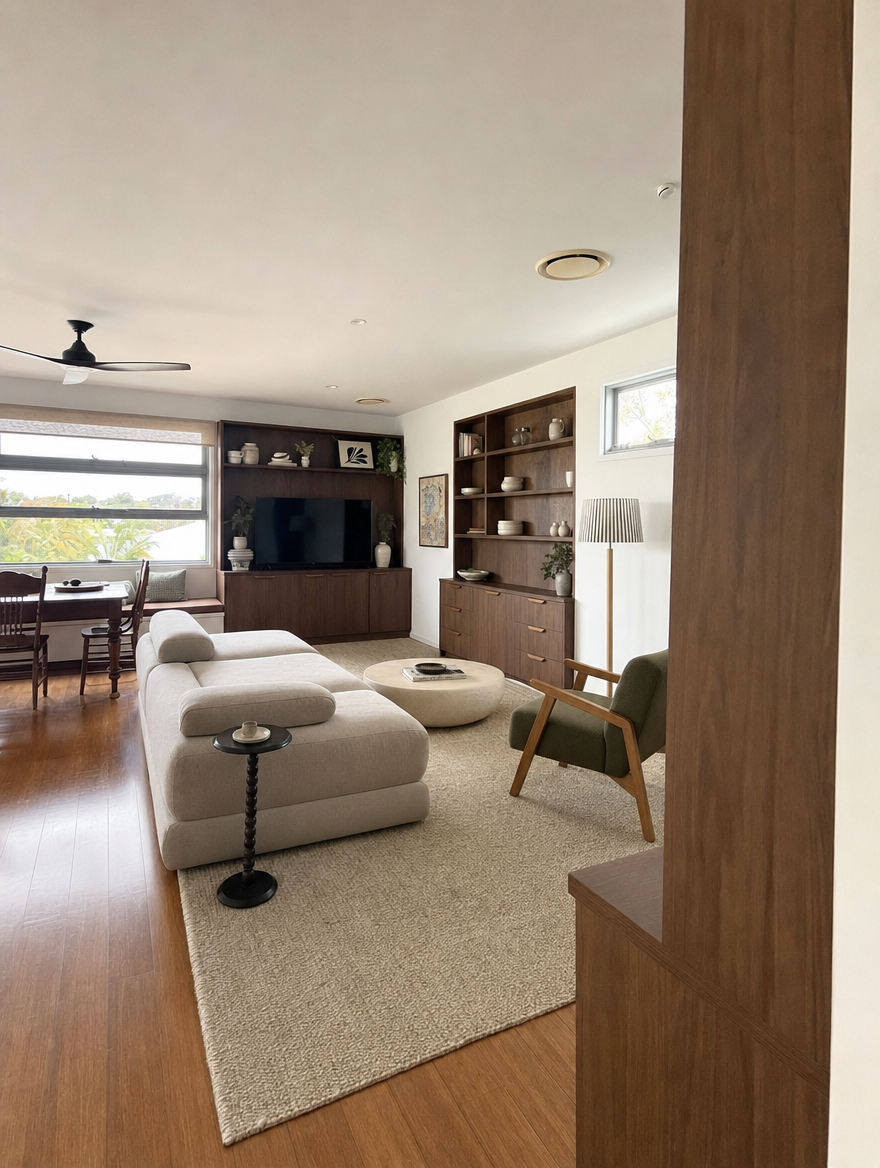

Retain first

  • Test the current TV / storage joinery.
  • Test whether the dining bench can remain.
  • Keep the timber floor as a material anchor.
  • Only replace the sofa if the approved layout requires it.

Buy last

  • Dining table after the island is fixed.
  • New sofa after circulation is fixed.
  • Occasional furniture after the two anchor zones are fixed.
  • Decorative lighting after furniture and island geometry are fixed.

Value test

  • Does the piece improve movement?
  • Does it work with the view and terrace?
  • Can it be serviced and delivered easily?
  • Is it solving a real need rather than filling empty floor?
DORSA rule

Do not buy furniture to disguise a layout problem.

05 · Money

Budget unknown is fine. Sequence matters more.

Melissa did not nominate a furniture or renovation budget. That is not a problem at this stage. The useful distinction is between changes that affect structure, services and joinery, and changes that can wait until the room geometry is proven.

Now

  • Measured social-room plan.
  • Structural / services check to the fridge wall.
  • Two island / terrace connection options.
  • Actual dining, stool and sofa clearances.

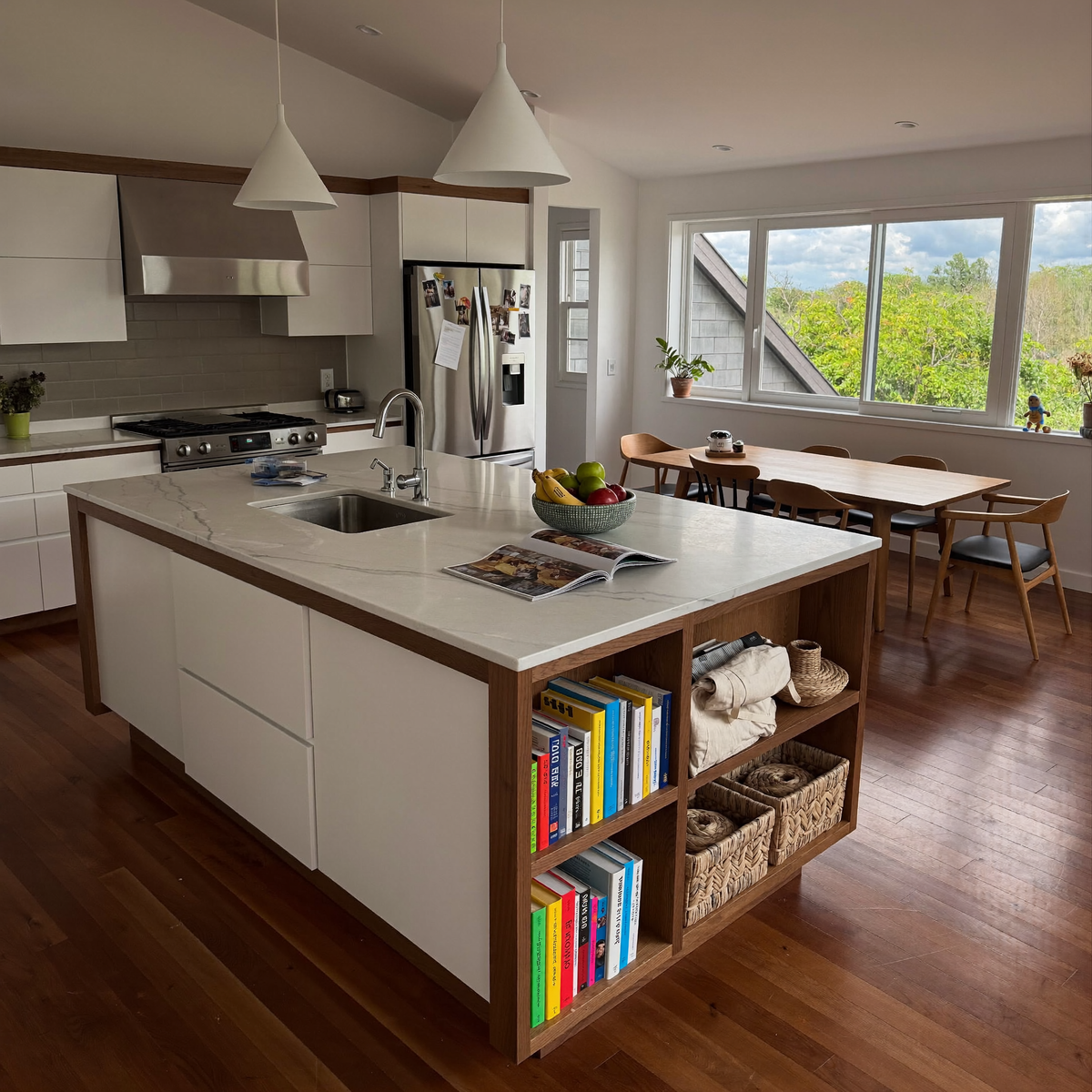

Later

  • New stone or island finish.
  • Decorative lighting.
  • Sofa and dining purchases.
  • Window treatments and styling.

Never just because

  • Gut the kitchen because the flow feels wrong.
  • Remove good joinery before the new plan proves it is in the way.
  • Add a huge island without real stool and circulation dimensions.
  • Buy a full furniture set before the architectural option is selected.
Budget positionNot nominated
Sequence first
Highest-cost riskWall opening
Structure
Services
Best-value moveMeasured plan
Two options
Real furniture
DORSA ruleFix flow first.
Finishes second.
Risk matrix

Protect the changes that are expensive to undo.

High cost · hard to reverseStructural wall opening, plumbing / electrical relocation, new kitchen joinery, altered openings.
High cost · easier to reverseSofa, dining setting, decorative lighting and premium loose furniture.
Lower cost · hard to reversePower locations, pendant positions, floor repairs and minor fixed joinery details.
Lower cost · easier to reverseRug, occasional chair, small tables, cushions and styling.
Money rule

Do not spend to make the room look different until you know why it currently feels wrong.

06 · Resolution

One move can unlock the whole social floor.

The strongest next step is not a moodboard. It is a measured comparison that proves the kitchen / terrace move and the furniture plan together.

First move
Prove the fridge-wall opening and sit-around island together.

Create one accurate plan of the existing kitchen, living, dining and covered terrace, then test two coordinated options. Option A keeps the wall and reworks the island / seating. Option B opens the wall toward the terrace and reorients the kitchen connection. Both options should show real stools, dining pull-back, living furniture, terrace access and the main walking path. Only then decide whether the structural opening earns its cost.

Wall structure / servicesIsland work clearance3-4 sit-around seatsDining pull-backLiving circulationTerrace thresholdWindow seat + view
Visual Resolution

Nine views that answer one question: does the new flow actually feel better?

Use the measured option plan as the geometry. The visuals should preserve the real window positions, warm timber floor, terrace relationship and existing elements that survive the review. Day and Night should match exactly except for light.

01Existing Social Room PlanSource supplied
02Option A · Island ReworkConcept pending
03Option B · Terrace OpeningConcept pending
04Kitchen + Sit-Around IslandConcept pending
05Dining + Window SeatConcept pending
06Living + Existing JoineryConcept pending
07Covered Terrace ConnectionConcept pending
08Matched DayConcept pending
09Matched NightConcept pending

Now

  • Measure the social room and the fridge wall accurately.
  • Photograph / note services, openings and ceiling conditions.
  • Confirm which existing joinery Melissa is open to retaining.

Next

  • Draw Option A and Option B.
  • Overlay real island seating, dining and sofa footprints.
  • Compare movement, weather use, storage and cost consequence.

Then

  • Choose the architectural option.
  • Resolve lighting and finishes around that geometry.
  • Only then shortlist new furniture and procurement.
Team pressure points

The four questions Melissa should get answered before committing to the room.

Builder / DesignerWhat exactly is the wall behind the fridge?
  • Confirm structure, bracing, services and waterproofing implications.
  • Show the realistic opening width and cost consequence.
  • Do not design the new kitchen around a wall removal that has not been verified.
Kitchen / JoineryHow many people can really sit around the island without compromising work clearances?
  • Draw stool depth, knee space, dishwasher / drawer conflicts and the main walking path.
  • Show the relationship to the dining table before the island is fixed.
  • Use the wet-weather brief as a functional requirement, not a styling idea.
Interior / FurnitureWhat can stay because it already works?
  • Test the window seat, TV / storage joinery and timber floor before demolition is proposed.
  • Keep the new furniture plan deliberately simpler than the current cluster.
  • Do not specify new pieces until the approved architectural option is fixed.
Lighting / ElectricalWhat changes if the island and terrace connection move?
  • Coordinate island power, task light, dining light, fan positions and switched scenes after the new plan is chosen.
  • Preserve daylight and operable openings rather than blocking them with cabinetry or furniture.
  • Keep the night scheme warm, layered and low glare.
Project Library

The working files behind Melissa's Residence Resolution.

Start with the page. Use the library when you want the measured plan, option studies and supporting resources.

00Client Inputs
01Spatial Review
02Visual Resolution
03Finish + Lighting
04Furniture + Procurement
05Team Pressure Pack
06Archive + Sources

Make the room easier to live in before making it more expensive.

This Resolution is an independent design review of Melissa's existing Sunrise Beach home, focused on the living, dining, kitchen and covered outdoor relationship she identified as not working.

Conceptual design-review guidance only. The supplied floor plan states that measurements are approximate and the plan is for illustrative purposes. DORSA has not completed a site measure or structural inspection. Any wall removal, joinery, electrical, plumbing, glazing, waterproofing or building work must be verified and documented by the appropriate project professionals. Sunrise Beach climate guidance used in the review is general suburb-level context, not lot-specific planning or engineering advice.
